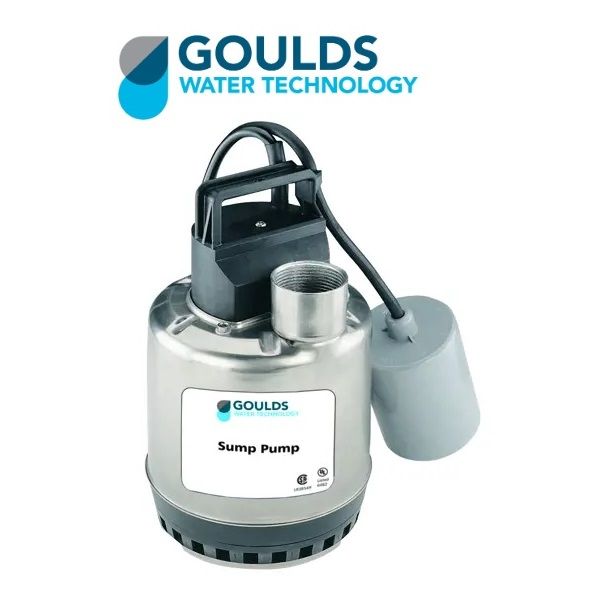

GOULDS LSP07 3/4 HP SUBMERSIBLE PUMP

Goulds pumps provide industry-leading benefits and are backed by over 170 years of dedicated service and support to their Pump line. This is why so many depend on the Pump Technology from Goulds. It is water pump technology for trusted performance right out of the box. Goulds pumps are backed by a one year warranty for water pump.

This lightweight, portable and easy to service sump pump is capable of handling up to 3/8" solids.

Features

• Motor is permanently lubricated for extended service life and is powered for continuous operation
• All ratings are within the working limits of the motor.
• Hard coated 400 series stainless steel shaft for improved corrosion resistance
• Float switch is adjustable for various liquid levels. Easily removed for direct pump operation or switch replacement
• A double labyrinth lip seal system protects the motor. It consists of three lip seals and a V-ring in addition to an impeller counterblade system which keeps solid particles away from the seal unit
• Built-in thermal overload protection with automatic reset

Applications

• Basement draining
• Water transfer
• Dewatering

Specifications:

• Brand: Goulds
• Mfg. Number: LSP0711AF
• Series: LSP07
• Application: Basement draining/water transfer
• Horsepower: 3/4 HP
• Voltage: 115 Volts
• Phase: 1
• Frequency: 60 Hz
• Speed: 3450 rpm
• Operation: Automatic
• Float Switch Style: Built-In Wide Angle
• Minimum On Level: 12.5"
• Minimum Off Level: 6.5"
• Impeller and Casing Material: Glass-filled thermoplastic
• Discharge Connection: 1-1/2" NPT
• Minimum Basin Diameter: 12"
• Maximum Flow: 57 gpm
• Maximum Head: 34 ft
• Maximum Solids Handling: 3/8"
• Maximum Submergence: 16 ft
• Motor Housing: Stainless steel
• Thermal Protection: Yes
• Current: 7.1 Amps
• Minimum Circuit Breaker: 10
• Maximum Liquid Temperature: 104°F
• Cord Length: 20 ft

Warranty 1 Year on Pump
