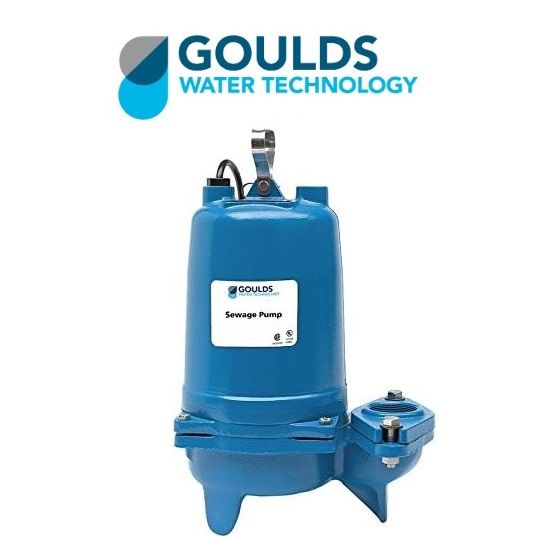

GOULDS PUMP WS0512BF SUBMERSIBLE SEWAGE PUMP 1/2 HP 1PH 230V

Goulds pumps provide industry-leading benefits and are backed by over 170 years of dedicated service and support to their Pump line. This is why so many depend on the Pump Technology from Goulds. It is water pump technology for trusted performance right out of the box. Goulds pumps are backed by a one year warranty for water pump.

Goulds 3887BF Submersible Sewage Pump

This sewage submersible pump is designed for effluent, sewage or wastewater applications and is capable of passing maximum 2 inch spherical solids.

Features

• 300 series stainless steel fasteners
• Capable of running dry without damage to components
• Designed for continuous operation when fully submerged
• Capacitor start motor for maximum starting torque
• Built-in overload with automatic reset
• Supplied with NEMA three prong grounding plugs
• Supplied with 2" NPT threaded companion flange which bolts to the flanged vertical discharge casing

Applications

• Homes
• Water transfer
• Submersible Sewage systems
• Light industrial
• Dewatering/Effluent
• Commercial applications

Specifications:

• Brand: Goulds
• Model Number: 3886
• Mfg. Number: WS0512B
• Series: WS B
• Product Type: Sewage pump
• Application: Sewage/Effluent/Dewatering
• Operation: Manual
• Horsepower: 1/2 HP
• Voltage: 230 Volts
• Phase: 1
• Frequency: 60 Hz
• Speed: 1750 RPM
• Impeller Diameter: 5.00"
• Impeller Type: Non-clog; semi open
• Flow at 10 ft: 122 GPM
• Power Cord Length: 20 ft
• Thermal Protection: Yes
• Flow at 15 ft: 92 GPM
• Maximum Solids Handling: 2"
• Discharge Connection: 2" NPT vertical
• Flow at 20 ft: 50 GPM
• Flow at 25 ft: N/A
• Maximum Flow: 160 GPM
• Flow at 30 ft: N/A
• Maximum Head: 25 ft
• Flow at 35 ft: N/A
• Locked Rotor Current: 16.5 Amps
• Resistance Start/ Line-Line: 11.7 / 5.6
• Maximum Current: 7.3 Amps
• KVA Code: J
• Full Load Motor Efficiency: 54%
• Maximum Temperature (Continuos): 104°F
• Maximum Temperature (Intermittent): 140°F

WARRANTY 1 YEAR
